Hpaga arai hpe maram yu ai

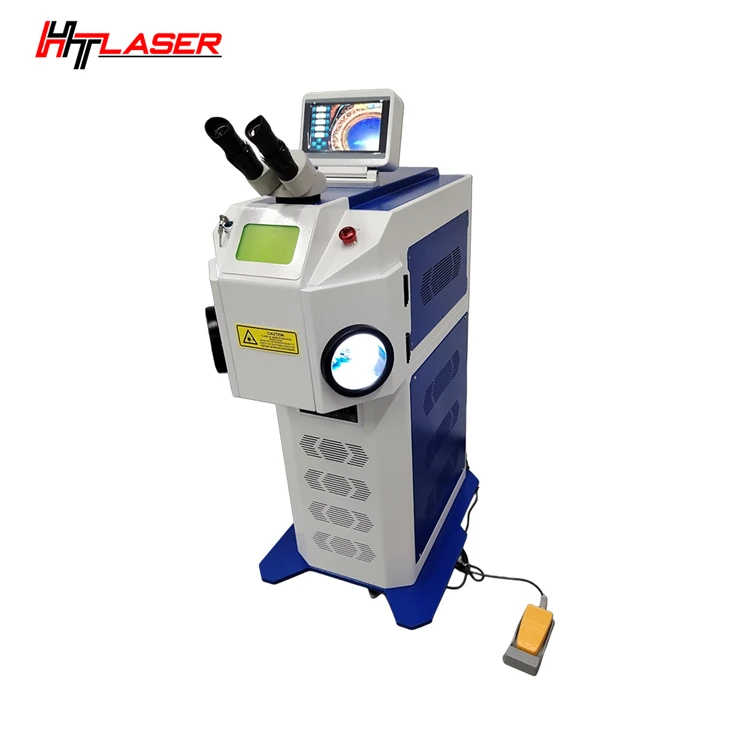

CCD hte mawn sumli ai arai ni hpe gram lajang na matu Laser Welder gaw ja, platinum, gumhpraw hte kaga manu dan ai nhprang arai ni hpe grai -htuk manu ai hku gram lajang na matu hte matut mahkai na matu pulsed laser welding ladat re.

Hpaji masa masat masa ni hte hkrang sumla lata la mai ai lam ni

Amyu	HT -W150	HT
Laser n-gun	150 W	200 W
Yawng n-gun	6 kW	9 kW
Pan grang	7-inch HD madun ai shingnip	7-inch HD madun ai shingnip
Microscope	10X	10X
N-gun hkang ai lam	1–100%	1–100%
Lang masat	1-30 Hz	1-30 Hz
Wave galu	1064 nm	1064 nm
Pulse dam lada ai	0.1-10 ms	0.1-10 ms
Spot galai shai ai lam	0.1-3.0 mm	0.1-3.0 mm
Kaji dik htum shara	0.3 mm	0.3 mm
Katsi ai ladat	Hka katsi ai	Hka katsi ai
N-gun jaw ai	AC220v ±10%, 50/60 Hz	AC220v ±10%, 50/60 Hz

Madung Lam Ni

10X microscope hte lang nna, asan sha mu lu na matu hte weld shara hpe hkrak hkrak tawn da lu na matu, tsaw ai-definition CCD yu ai ladat hpe jai lang ai.

Pulsed laser welding hte n-gun, n-gun n-gun hte pulse width hpe gram lajang lu ai hku nna, n-gun n rawng ai mawn sumli ai daw ni hpe hkang lu ai hku gram lajang lu ai.

Ring, chain, prongs hte kaga n-gang n-gang ni a matu 0.1 mm hta n-pu (sh) maren sha re ai Weld point positioning hkrak ai lam.

Heat-affected zone hpe 0.5 mm hta n-pu (sh) maren sha kata kaw hkang lu ai majaw, makau grup yin na mawn sumli ai shara ni hte shara ni hta katsi ai lam hpe shayawm ya lu na re.

Hkring mi tup matut manoi bungli galaw lu na matu madi shadaw ya ai, chyahkring hkring jewelry gram lajang ai bungli galaw ai shaloi, ngang grin ai hku galaw lu na matu hka katsi ai ladat.

Bungli galaw ai lam hte bungli galaw ai lam

Power matut ngut ai hpang lawan ai hku gram lajang na matu, Factory-calibrate galaw da ai system.

CCD yu ai hte 10X microscope gaw, bungli galaw ai ni hpe n galaw shi yang, weld shara hpe chye na hkra karum ya ai.

Touch interface gaw n-gun, n-gun, nsen n-gun hte shara kaba ai hpe asan sha galai shai ya lu ai.

Pulsed laser welding gaw lata la ai gram lajang ai shara de hkang lu ai nbung hpe jaw ya ai.

Weld a mahtai hpe n-gun n rawng shi yang (sh) bai gram lajang shi yang, viewing system hku nna jep yu mai ai.

Laksan jai lang ai lam ni

Ja shingkyit hpe gram lajang na matu hte galu kaba wa na matu Laser Welding galaw ai
Ja n-gang hte mawn sumli ai arai ni a matu ring hpe galu kaba hkra galaw ai, n-gun n rawng ai hpe gram lajang ai hte daw mat ai joint ni hpe welding galaw ai.

Platinum n-gang gram lajang ai
Prong hpe bai gawgap ai hte lung seng- hta jung da ai platinum n-gang ni hte pendant ni a matu n-gup hpe gram lajang ai.

Gumhpraw sumri Welding
Gumhpraw sumri hte lata shingkyit ni a matu daw mat ai link, clasp hte connector welding galaw ai.

Ja htu ai htinggaw hpe gram lajang ai
Na shingkyit, shingkyit, shingkyit hte mawn sumli ai mawn sumli ai arung arai ni a matu buga ginra kaw na joint welding galaw ai.

Hka htung kaji hpe jahpring ai
Manu dan ai magri mawn sumli ai arung arai ni hta pinhole hpe jahpring ya ai, n-gun n rawng ai hpe gram lajang ya ai hte ntsa lam n kaja ai hpe sharai ya ai.

N-gun kya ai hkrang hpe bai gram lajang ai
N-gun n rawng ai jut ni, jut kaji ni, n-gang ni hte n-gun n rawng ai magri npawt ni a matu kaja ai welding galaw ai.

Hpri kaji ni hpe Welding galaw ai
Myi man magap, ahkying aten a daw ni, mawn sumli ai arai ni hte magri arung arai kaji ni a matu hkrak tup welding galaw ai.

Laksan lata la mai ai lam ni

Wan n-gun hte plug
Voltage, frequency hte plug amyu hpe mungdan hte ginra shagu hta hkan nna gram lajang mai ai.

Logo hte mying jahpan
Logo, mying jahpan hte arung arai ni hpe OEM order ni a matu laksan galaw mai ai.

Mashin hkrang shapraw ai lam
Laser n-gun, CCD system, Microscope, arung arai ni hte n-gun n-rawng ai arung arai ni hpe lata la mai ai.

Anhte hpe Hpa Majaw Lata Ai Kun?

20+ shaning tup laser jak rung mahkrum madup nga ai rai nna, R&D, hkrak tup galaw shapraw ai lam hte hpaga lam hta jai lang ai lam ni hpe shinggrup da ai.

Ladat hpe jep joi ai lam, arung arai ni hpe gram lajang ai lam, n-gun atsam ni hpe hkrang shapraw ai lam hte tinang hkrai galaw shapraw ai line hpe hpaw shalawm ai lam ni a matu laksan madi shadaw ya ai.

Multi-process laser atsam ni gaw, shingnip shingna, htu ai, jasan jaseng ai, shingnip shingna, shingnip shingna hte hkrak tup ai arung arai ni hpe galaw ai lam ni hpe shinggrup da ai.

EV, lithium battery, semiconductor, nhtoi htoi ai, wan jak hte hpaga lam galaw ai lam ni hta bungli masing mahkrum madup nga ai.

Quality hpe hparan ai lam, online hku nna jep joi ai lam hte galaw shapraw ai lam hpe hkan tam lu ai ladat ni hpe n-gun jaw na matu, n-gun rawng ai arung arai ni a bungli galaw ai lam hte galaw sa wa ai lam hpe hkang zing ai lam ni hpe madi shadaw ya ai.

CE, FDA hte ISO9001:2015 masat masa ni hpe lu la ai, mungdan ting na hpaji ningnan 4 hte utility model patent 20 jan nga ai.

100+ mungdan ni hte ginra ni hta nga ai customers ni a matu mungkan ting na hpaji masa madi shadaw ai lam, hpaji jaw ai lam, jung ai lam, bungli galaw hpang ai lam hte-dut ngut ai hpang na magam bungli ni hpe shinggrup da ai.

FAQ

San: Bulk order n galaw shi yang, jewelry sample ni hpe chyam yu mai na kun?

A: Rai sai. Mari ai ni gaw, bungli masing ra ai hte maren, manu jahpu n jaw ra ai sha (sh) manu jahpu-madung hku nna jewelry sample ni hpe jaw mai ai. Chyam dinglik ai lam gaw, law law n mari shi yang, welding galaw ai lam, model lata ai lam, parameter settings hte CCD yu na matu htuk manu ai lam ni hpe jep chyoi na matu karum ya ai.

Q: Ndai laser welder a matu n-gun jaw ai aten gaw gara hku rai na kun?

A: Standard arung arai ni hpe bat 1–6 laman hta sha sa ya ai, dai gaw configuration hte order law ai hta hkan nna re. Customized order ni hpe n galaw shi yang, grau nna kam hpa ra na re.

San: Import (sh) garan gachyan ai ni hpe bai maram yu na matu masat da ai laika ni hpe jaw lu na kun?

A: Rai sai. Lu ai CE, FDA hte ISO9001 masat masa laika ni hpe bai maram yu na matu jaw mai ai. Mari ai ni gaw, yaw shada ai gat lawk, arung arai ni hpe gram lajang ai lam hte maigan de htaw sa ra ai lam ni hte maren, jai lang mai ai laika buk a shingdu labau hpe madi shadaw ra ai.

San: Anhte ra sharawng ai hku galaw na matu order galaw mai na kun?

A: Rai sai. OEM/ODM hpe gram lajang ai lam hpe madi shadaw ya ai, voltage, ga hte hkrang hpe gram lajang ai lam ni lawm ai. Bulk order ni hpe mung mari ra ai lam ni hte maren lajang mai ai.

San: Mungkan ting na mari ai ni a matu -dut ngut ai hpang gara madi shadaw lam ni nga ai kun?

A: Anhte gaw mungkan ting na mari ai ni a matu prat tup online hpaji lam hta madi shadaw ya ai, video galaw ai lam matsun ya ai, manghkang hparan ai lam hte -dut ngut ai hpang daw jau ai lam ni hpe galaw ya ai. Standard spare parts ni hpe gram lajang ai lam hpe madi shadaw ya lu nna, jak rung ni hkrat sum ai aten hpe shayawm ya lu ai.
